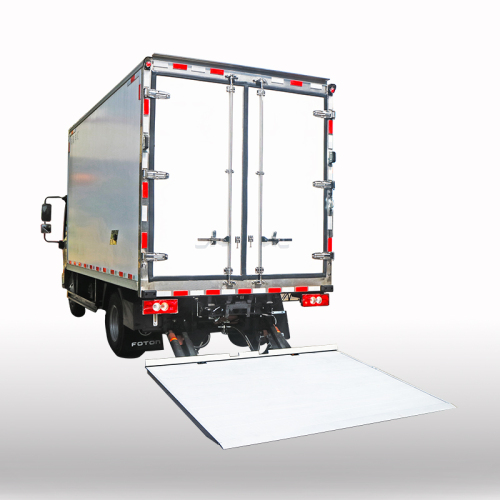

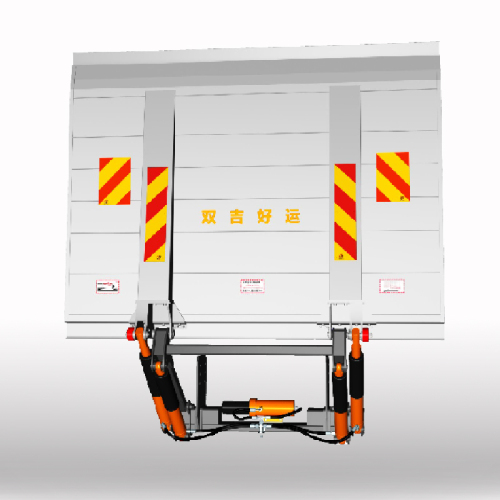

铝制汽车尾板

产品编号: SJ-TL003
  • 型号:
    SJ-PP06/LA
    SJ-PP15/LA
    SJ-PP20/LA
  • 面板尺寸(mm):
    1600*1500
    1800*1800
    1900*1800
    2000*1800
    2100*1800
    2200*1800
    2300*1800
    2400*1800
    2500*1800
  • 额定载重(kg):
    600
    1500
    2000
  • 整机质量(kg):
    200
    400-450
    500-550
  • 其他定制请联系我们:
描述 评价
描述

1.平板总成 10.黄油嘴 19.六角头螺栓
2.防松螺母 11.法兰面六角螺栓 20.弹垫
3.平垫 12.滑动轴承(S型) 21.四通接头(H型)
4.尼龙轮套 13.支座销轴2 22.四通接头支架
5.尼龙轮 14.举升油缸总成 23.增压油缸总成
6.滑动轴承(S型) 15.滑动轴承(S型) 24.镀锌强力卡箍
7.支座销轴1 16.举升臂总成 25.平板销轴
8.关节轴承 17.滚轮销轴 26.直通接头
9.关门油缸总成 18.尾板支座 27.组合垫

柳州双吉铝制汽车尾板标准款型号参数

型号

面板尺寸

(mm)

额定载重

(kg)

最大举升高度

(mm)

系统压力

(Mpa)

工作电压

(V)

平均升降速度

(mm/s)

整机质量

(kg)

SJ-PP06/LA 1600*1500 600 800 16 12/24 80 200
SJ-PP15/LA (1800-2500)*1800 1500 1300 16 12/24 80 350-400
SJ-PP20/LA 2000 1550 16 12/24 80 450-500



柳州双吉汽车尾板安转图



安装定位尺寸主要为图示A、B、D、E、F五个参数

型号

A

(mm)

B

(mm)

D

(mm)

E

(mm)

F

(mm)

大梁宽度

(mm)

Min Max Min Max Max Max   Max
SJ-PP06/LA 300 470 565 728 580 1050 180 800
SJ-PP15/LA 320 580 605 810 720 1300 180 960
SJ-PP20/LA 400 700 830 1040 850 1550 200 960




评价
评价

1/3
